Pivot or Hinged Door: Which One Is the Better Choice?

When planning your dream interior—whether it’s a luxury villa, a modern office, or a boutique store—selecting the right door mechanism is crucial. The two most common options for stylish interiors are pivot doors and hinged doors. Each offers distinct technical benefits and visual effects. But which one suits your project better?

Let’s break down the differences in mechanism, load capacity, size range, sound insulation, and other key aspects.

🔧 1. Mechanism: How They Open

• Hinged Doors
  Open by swinging on traditional or hidden side hinges. The hinges are fixed to the frame, and the door opens around one side axis. Importa uses modern 3D adjustable concealed hinges for a seamless look.


• Pivot Doors
  Rotate on a central or offset vertical pivot mounted at the top and bottom of the door, not the side. The door swings open with a floating effect, and part of the door swings both inside and outside the frame.



✅ Visual Difference: Pivot doors create a grand, sculptural movement, while hinged doors keep a clean, flush aesthetic with the wall.

🏋️ 2. Load Capacity & Materials

• Hinged Systems
  Usually support up to 60–80 kg with concealed hinges. Perfect for standard-size doors (up to 3000 mm and more), but heavy cladding like stone or thick glass can be a challenge.


• Pivot Systems
  Handle very heavy weights—often up to 150–200 kg or more. Ideal for large or extra-thick doors, including those with metal, ceramic, or stone finishes.



✅ Best for Heavy Finishes: Pivot doors allow more creative freedom with thick and layered surfaces.

📏 3. Size Possibilities

• Hinged Doors
  Most effective in sizes up to 3000 mm high and 1000 mm wide.


• Pivot Doors
  Often used for large statements: 3000–3500 mm high and up to 1500 mm wide or more. Some ultra-luxury designs exceed these dimensions.



✅ For oversized entrances, pivot doors are unmatched.

🔇 4. Sound & Thermal Insulation

• Hinged Doors
  Offer better sealing and therefore higher sound and thermal insulation. Hidden thresholds, dropped seals, and magnetic locks (as used by Importa) can boost performance even further.


• Pivot Doors
  Because of their top and bottom pivot mechanism, they have a small air gap at the base and around the pivot—making them less effective in soundproofing and insulation.



✅ Hinged doors win if privacy, quiet, or thermal control is a priority (e.g., bedrooms, meeting rooms, or media rooms).

🚪 5. Design & Aesthetic Impact

• Hinged:

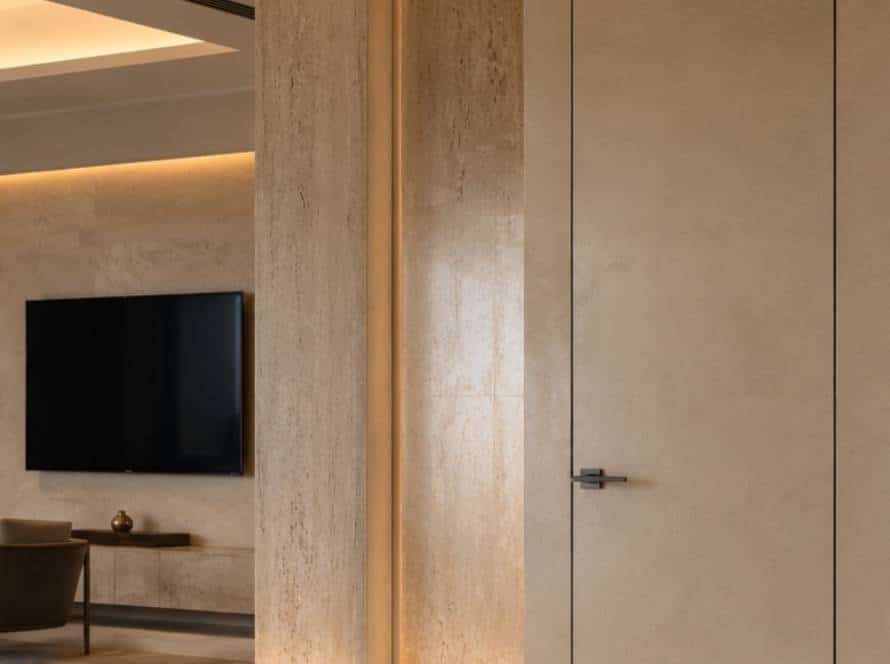

  Ideal for invisible doors, flush with the wall, blending seamlessly. Works great in minimalist and integrated wall designs.


• Pivot:
  A visual centerpiece. They draw attention and add dynamic movement to your space.



✅ Hinged = subtle elegance. Pivot = bold architectural statement.

⚙️ 6. Maintenance & Functionality

• Hinged:
  Easier to install and maintain. Most hardware (hinges, closers, locks) is standardized and replaceable.


• Pivot:
  Needs precise installation and often requires floor-integrated systems. Fewer parts are interchangeable, so it’s best left to professionals.



✅ Hinged doors are more practical for residential use; pivot doors require specialized installation.

7. 🛠️ Structural Recommendations: Pivot vs. Hinged Door Fixing

Understanding the load distribution and fixing method is essential for a long-lasting and safe installation—especially when working with heavy designer doors.

🔩 Pivot Doors – Load Goes to Floor & Ceiling

• Pivot doors are not fixed to the wall like traditional systems.


• The entire weight of the door is transferred through:


  • A floor-mounted pivot box or bearing system (handles vertical load)


  • A ceiling plate or top pivot (stabilizes the top swing)


• Important:


  • Ensure the floor is strong and level—concrete or reinforced screed is ideal.


  • The ceiling or lintel must be able to anchor and hold the top pivot securely.


  • Avoid mounting pivot doors on raised wooden floors or suspended ceilings without extra reinforcement.



Hinged Doors – Load Goes to the Side Wall

• Hinged doors rely on side-mounted concealed hinges.



• All vertical load (door weight) and swing movement is carried by:



• The aluminum door frame, fixed into the wall opening



• Frame must be solidly anchored into brick/block/concrete, not just drywall or partition studs.



• Important:



• Always use metal frame anchors or long screws through the aluminum frame into the side structure.



• If using in drywall or gypsum partitions, install metal reinforcements or wood inserts inside the wall.

✅ Summary:

🧠 Conclusion: Which One Is Better?
